Project FireFly

Appearance

FFC3232-2603 ​

Description ​

This controller model was the final test bed for software development and manufacturing.

Status: Manufactured, Unreleased

Hex: 0x32322603

Number of Inputs: 32

Number of Outputs: 32

Form Factor: Rack Mount

Power Input ​

  • Minimum: 7VDC
  • Recommended: 12VDC 6A
  • Maximum: 26VDC

Minimum Amperage Changed

The minimum power supply amperage changed to 6A with this version due to elimination of the 9VDC power system. Clients connected are now fed power directly from the power supply.

MCU ​

Espressif Systems ESP32-WROVER-E-N16R8 with 16MB Flash Storage.

I2C Addresses ​

AddressUsageNotes
0x20Input Ports 1-4
0x21Input Ports 5-8
0x22Input Ports 9-12
0x23Input Ports 13-16
0x24Input Ports 17-20
0x25Input Ports 21-24
0x26Input Ports 25-28
0x27Input Ports 29-32
0x40Output Ports 1-16
0x41Output Ports 17-32
0x70Output All-CallNot used
0x48Temperature Sensor
0x3COLED DisplayVariable, check display configuration

Inputs ​

This model features 4 banks of 8-RJ45 connectors without LEDs.

PinWire ColorUsage
1White/OrangeChannel 1
2OrangeChannel 2
3White/GreenChannel 3
4Blue+12VDC
5White/Blue+12VDC
6GreenChannel 4
7White/BrownGround
8BrownGround

Power Output Voltage Changed

Clients connected are now fed power directly from the 12V power supply.

Outputs ​

This model features 16 double-stack 90 degree 5.08mm pluggable terminal block.

Pinout

PinWire ColorMeaning
VRedVariable (0-5VDC)
+GreenConstant (12VDC)
-BlackGround

Constant Power Output Voltage Changed

Output power is now fed power directly from the 12V power supply.

Network ​

Network connectivity is via Ethernet using a W5500 chipset featuring an RJ45 connector with status LEDs.

Bill of Materials ​

The device's bill of materials is below, with links to the data sheets for each component.

NameDesignatorQuantityManufacturer PartManufacturerSupplierSupplier Part
100uFC1–C3232GRM31CR61A107MEA8LmuRata(村田)LCSCC883598
330uFC3316TPE330MAPPANASONIC(松下)LCSCC79112
1uFC34, C412CL05A105KA5NQNCSAMSUNGLCSCC52923
470uFC35, C36, C39, C984VEJ471M1ETR-1010LELONLCSCC176672
1nFC43, C5720402B102K500NTFHLCSCC1523
100nFC44, C46, C47, C48, C49, C50, C51, C54, C62, C63, C79, C82, C84, C85, C87, C89, C92, C94, C99, C100, C101, C11022CL05B104KO5NNNCSAMSUNGLCSCC1525
10uFC45, C52, C53, C80, C81, C83, C86, C88, C90, C91, C9311CL21A106KAYNNNESAMSUNGLCSCC15850
10nFC55, C602CL05B103KB5NNNCSAMSUNGLCSCC15195
4.7uFC561CS2012X5R475K500NRESamwha CapacitorLCSCC513770
6.8nFC58, C5920402B682K500NTFHLCSCC1542
22nFC6110402B223K500NTFHLCSCC1532
18pFC64, C652CL10C180JB8NNNCSAMSUNGLCSCC1647
47uFC971TAJC476K016RNJAVXLCSCC7219
SK32WAD11SK32WASKLCSCC183472
BZX84C12LT1GD21BZX84C12LT1GONLCSCC82475
47uHL11PSPMAQ0605H-470M-ANPPROD(谱罗德)LCSCC436585
OLED Display HeaderH21MTP125-1104S1MINTRONLCSCC358686
Flash HeaderH11210-91-04GB01PINREXLCSCC390680
LED Button HeaderH401B4B-XH-A(LF)(SN)JST Sales AmericaLCSCC144395
HR911105A_C12074J11HR911105AHANRUNLCSCC12074
DS1131-S80BPRJ1, RJ2, RJ3, RJ44DS1131-S80BPCONNFLYLCSCC77853
12VDC 3ACN1711757242Phoenix ContactLCSCC90074
KF2EDGRH-5.08-2*3PCN1–CN1616KF2EDGRH-5.08-2*3PCixi Kefa ElecLCSCC577721
10kΩR1, R2, R3, R7, R8, R17, R25, R33, R34, R35, R36, R37, R38, R39, R40150402WGF1002TCEUniOhmLCSCC25744
220ΩR4, R19, R20, R21, R2250402WGF2200TCEUNI-ROYAL(厚声)LCSCC25091
2.2kR5, R620402WGF2201TCEUniOhmLCSCC25879
1MΩR2610603WAF1004T5EUniOhmLCSCC22935
12.4kΩR1810402WGF1242TCEUniOhmLCSCC11692
49.9ΩR49, R50, R51, R5240402WGF499JTCEUniOhmLCSCC25120
470ΩR11–R100320603WAF4700T5EUNI-ROYAL(厚声)LCSCC23179
4.7kΩR195, R19620402WGF4701TCEUniOhmLCSCC25900
200kΩR19410402WGF2003TCEUniOhmLCSCC25764
10kΩ (Array)RN1, RN224D02WGJ0103TCEUniOhmLCSCC25725
33Ω (Array)RN314D02WGJ0330TCEUNI-ROYAL(厚声)LCSCC25501
100Ω (Array)RN33–RN4816YC248-JR-07100RLYAGEO(国巨)LCSCC695200
ESP32-WROVER-E (16MB)U111ESP32-WROVER-E-N16R8ESPRESSIF(乐鑫)LCSCC529589
PCA9685PW, 118U1, U22PCA9685PW, 118NXP(恩智浦)LCSCC2678753
PCA9555PW, 118U3, U4, U5, U6, U7, U8, U9, U108PCA9555PW, 118NXPLCSCC128392
CBM100505U121TU14, U252CBM100505U121TGuangdong Fenghua Advanced TechLCSCC316452
XL1509-3.3E1U191XL1509-3.3E1XLSEMILCSCC74193
W5500U241W5500WIZNETLCSCC32843
PZ1608U300-3R0TFU311PZ1608U300-3R0TFSunlordLCSCC279766
LM2940S-5.0/TRU301LM2940S-5.0/TRHGSEMILCSCC434496
LSF0102DCURU281LSF0102DCURTI(德州仪器)LCSCC964636
PCT2075DP, 118U131PCT2075DP, 118NXP SemiconLCSCC192518
Flash SwitchSW21TS-1088-AR02016XUNPULCSCC720477
Reset SwitchSW11PTS645VL832LFSC&KLCSCC285525
OLED DisplayFeiyang1OLED-128O032D-LPP3N00000VishayAliExpress2251832485919024
25MHzX213TJ425000XYFBCJYJE(晶友嘉)LCSCC2149071

Reference Designs ​

Schematic

EasyEDA Project

Gerber Files

BOM

Pick and Place

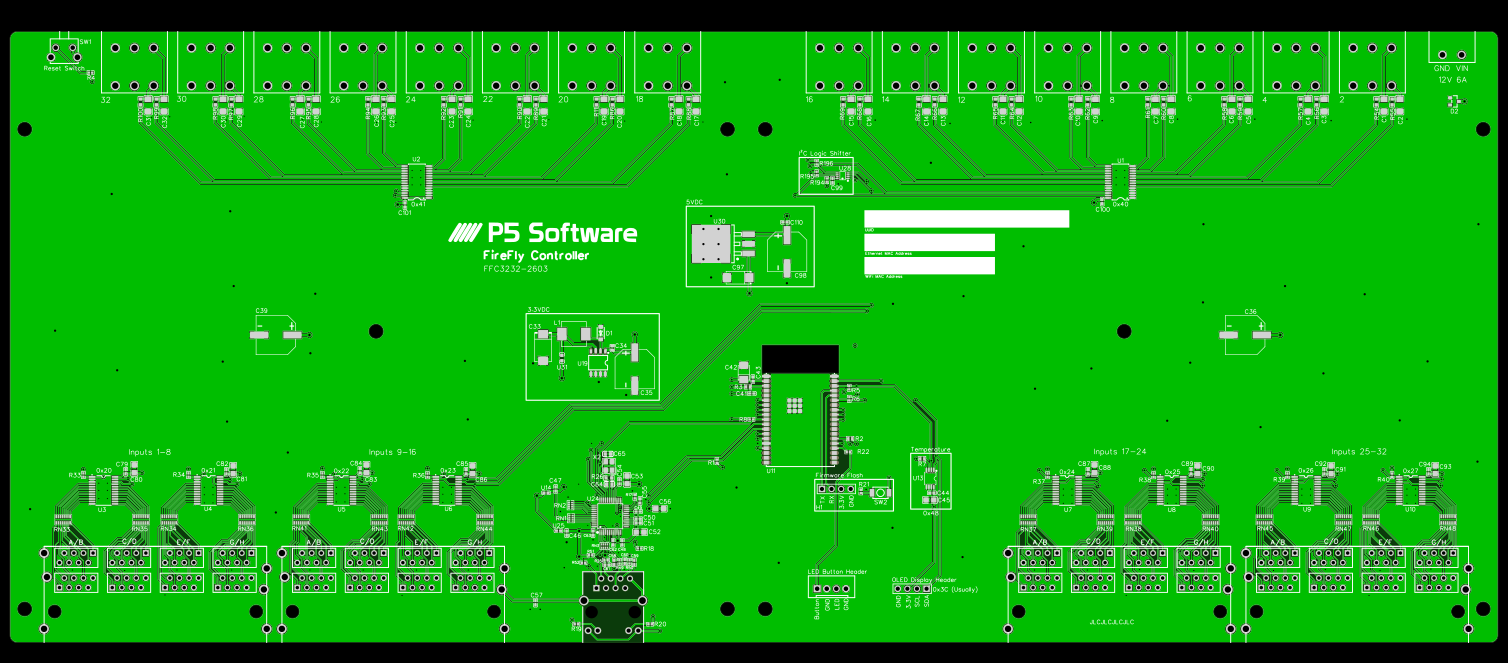

PCB Top

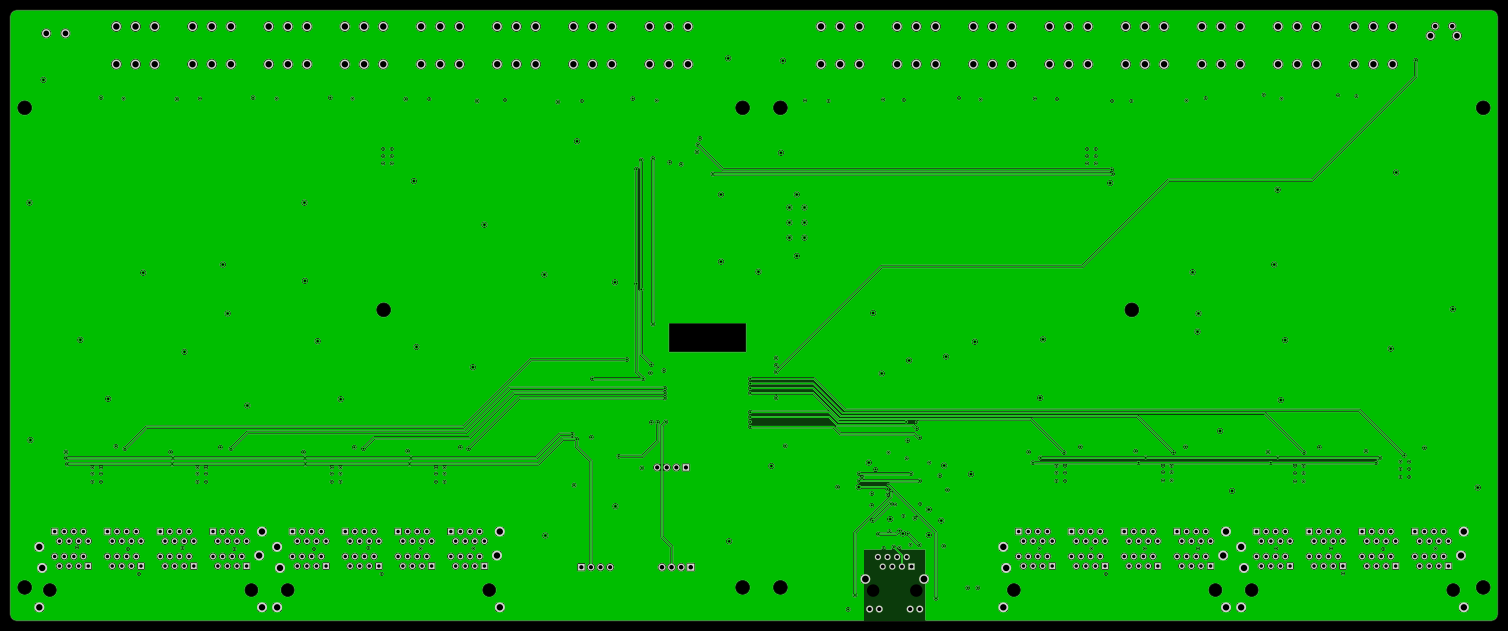

PCB Bottom

3D Printed Parts ​

TODO

Major Changes in this Version ​

There were major changes introduced in this version compared to prior hardware iterations:

  • Minimum power input was chanaged from 10.5VDC to 7VDC
  • Power input required changed from 3A to 6A
  • Output constant power changed from 9VDC to 12VDC
  • Client input power supply changed from 9VDC to 12VDC
  • All 9VDC power was removed
  • EEPROM was removed
  • Various GPIO pins were moved
  • Corrected Ethernet connectivity issues
  • Corrected MCU model in schematic
